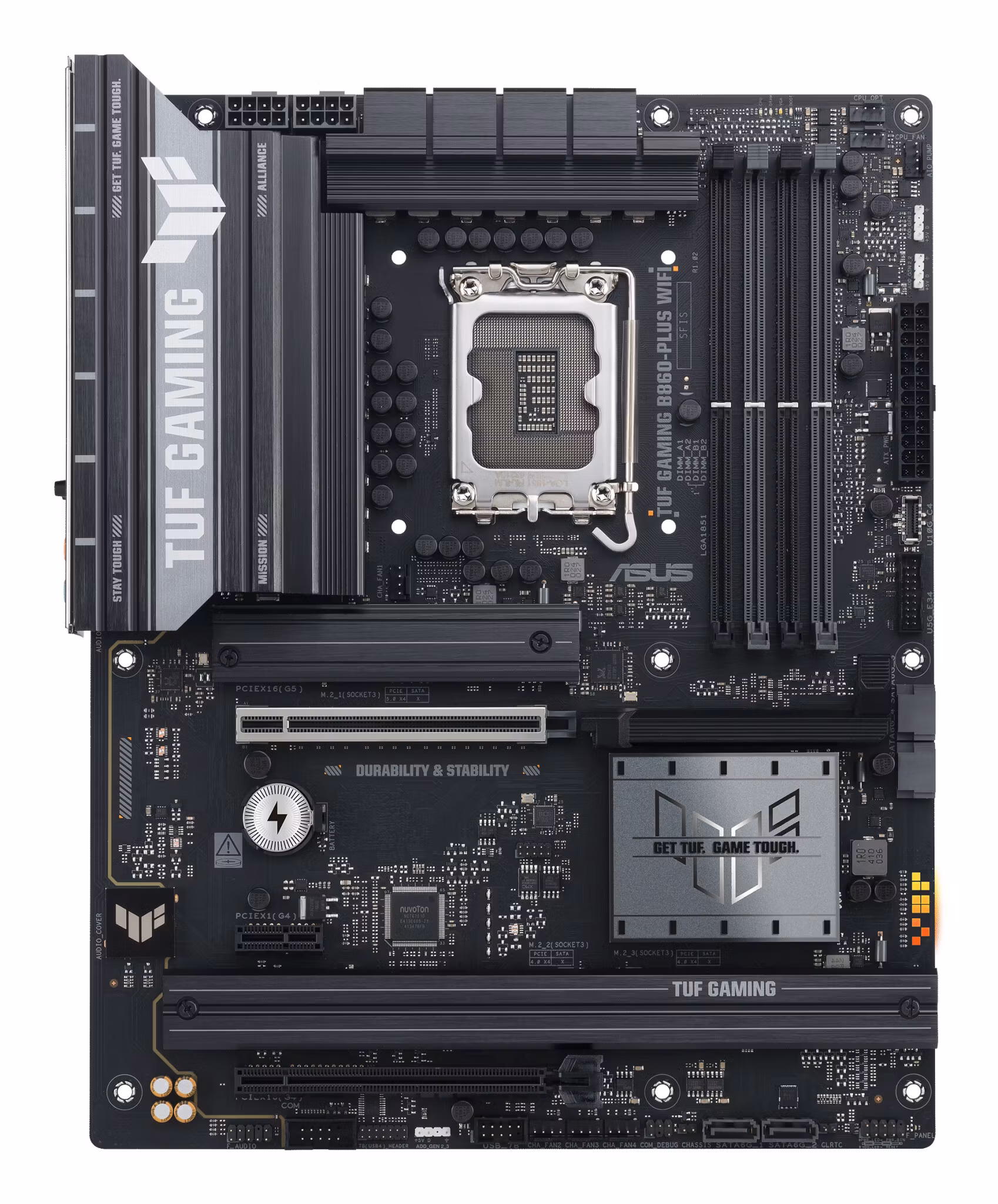

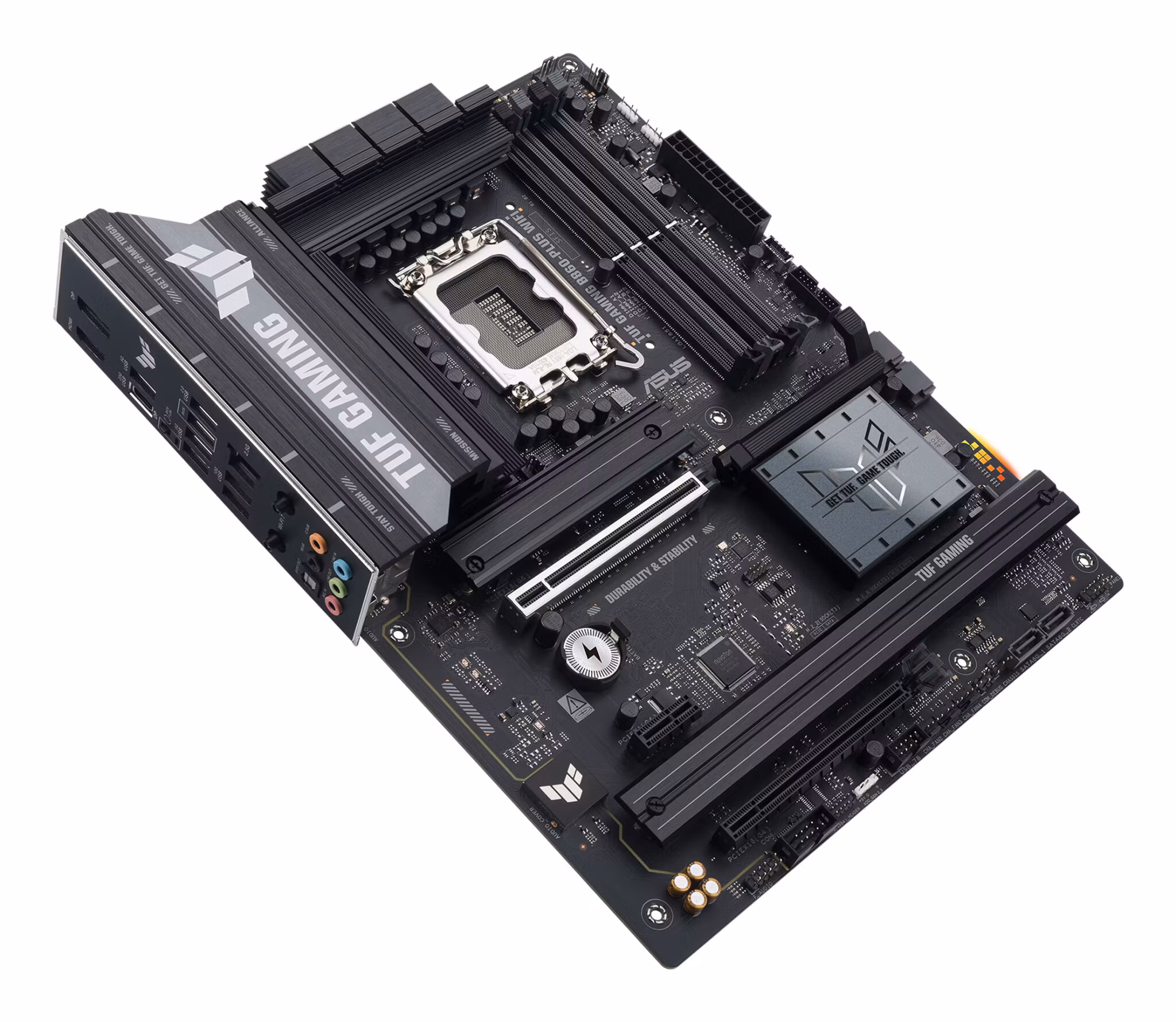

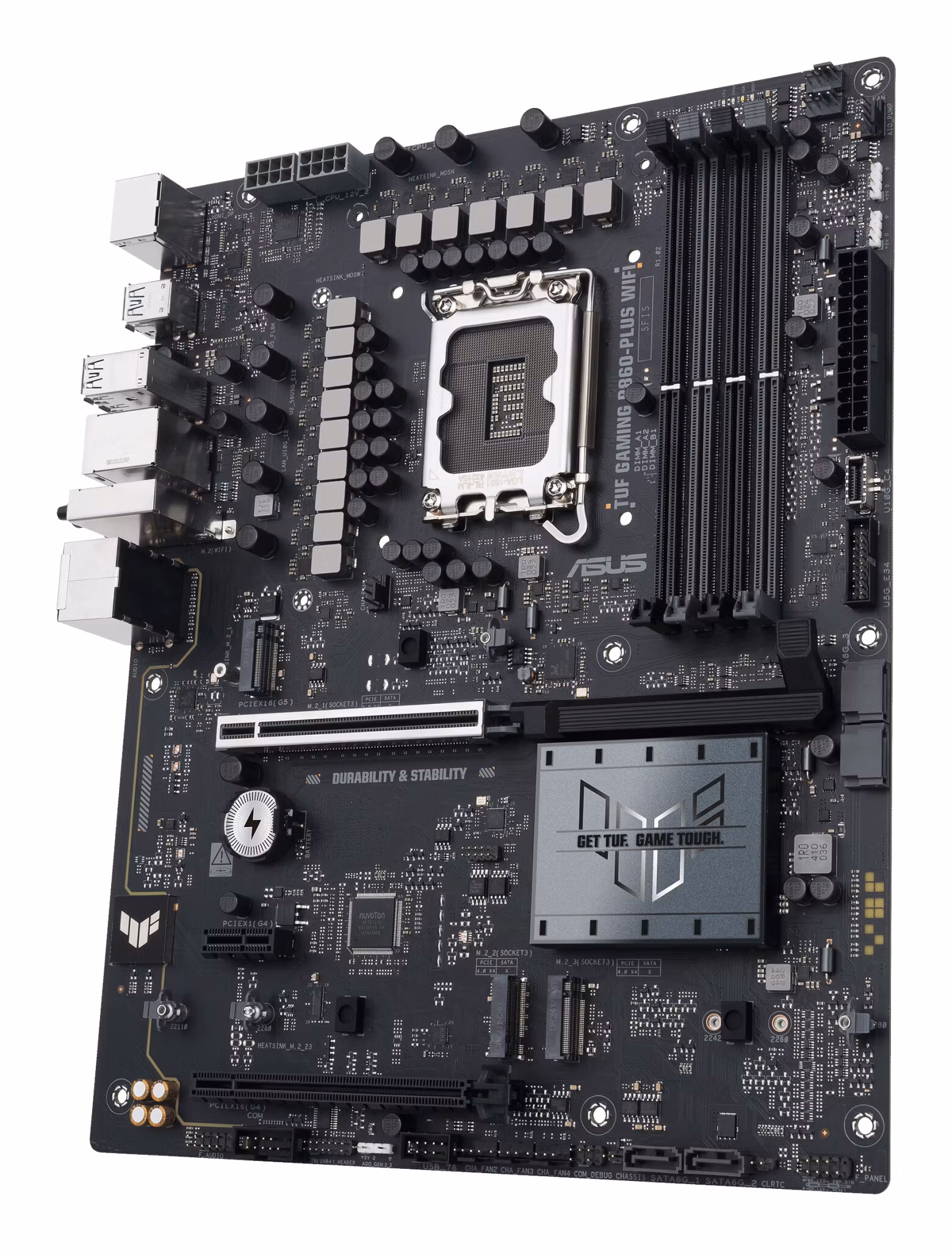

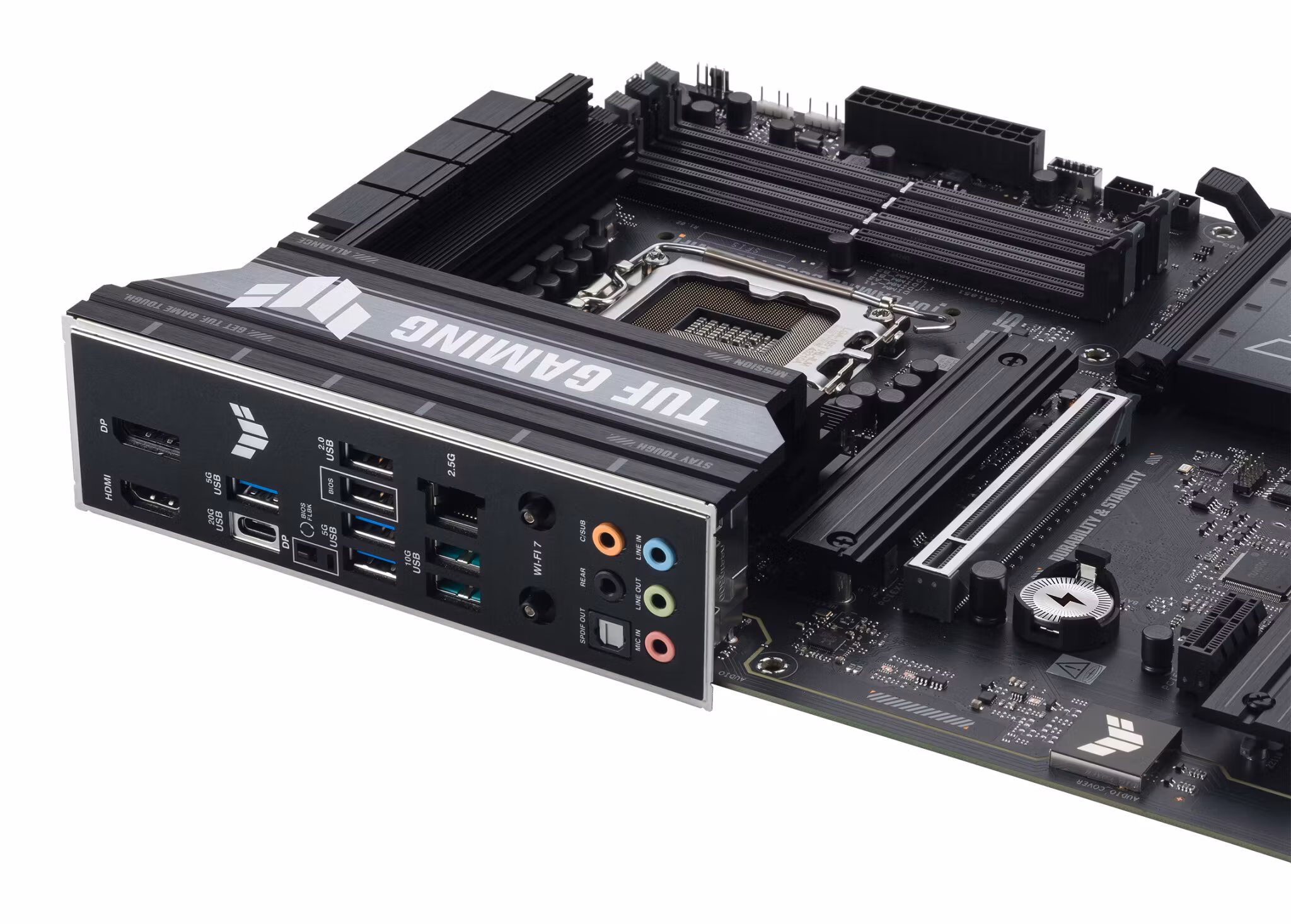

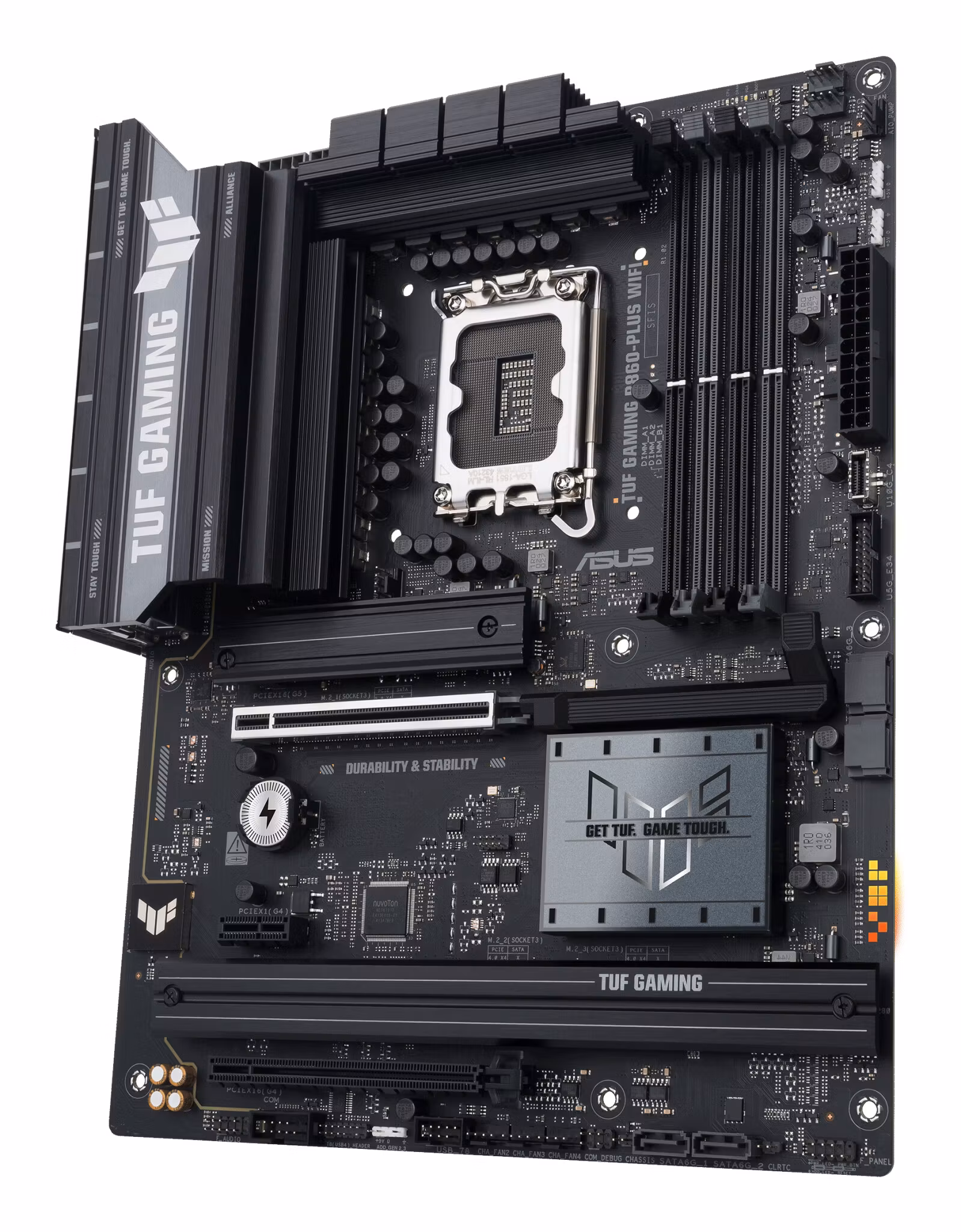

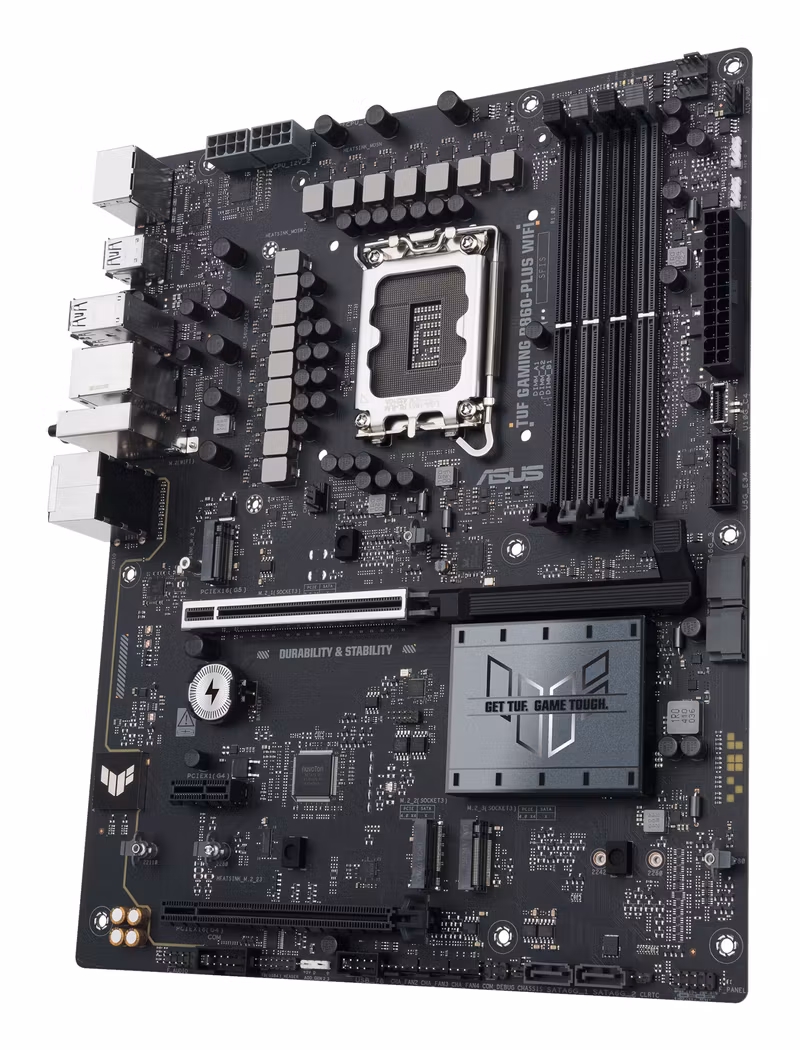

ASUS TUF GAMING B860-PLUS WIFI Intel B860 LGA 1851 (Socket V1) ATX
- 2 646 kr
TUF GAMINGB860-PLUS WIFIASUS TUF GAMING B860-PLUS WIFI samlar alla viktiga egenskaper hos de senaste Intel® Core™ Ultra Processors (Series 2) och kombinerar dem
Artikelnummer:
4711387815144
|
Leverantör:
ASUS
TUF GAMING
B860-PLUS WIFI
ASUS TUF GAMING B860-PLUS WIFI samlar alla viktiga egenskaper hos de senaste Intel® Core™ Ultra Processors (Series 2) och kombinerar dem med funktioner anpassade för gaming och beprövad hållbarhet. Moderkortet är byggt med komponenter i militärklass, en uppgraderad strömlösning och ett omfattande kylsystem. Resultatet är stabil och pålitlig prestanda även vid långa spelsessioner. TUF GAMING-moderkort genomgår dessutom rigorösa uthållighetstester för att säkerställa att de klarar förhållanden där andra kan fallera. Plattformen levererar den kraft och anslutning som avancerade AI PC-applikationer kräver.
Specifikationer
| Processor manufacturer | Intel |
|---|---|
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 4 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Thunderbolt headers | 1 |
| 12V power connector | Yes |

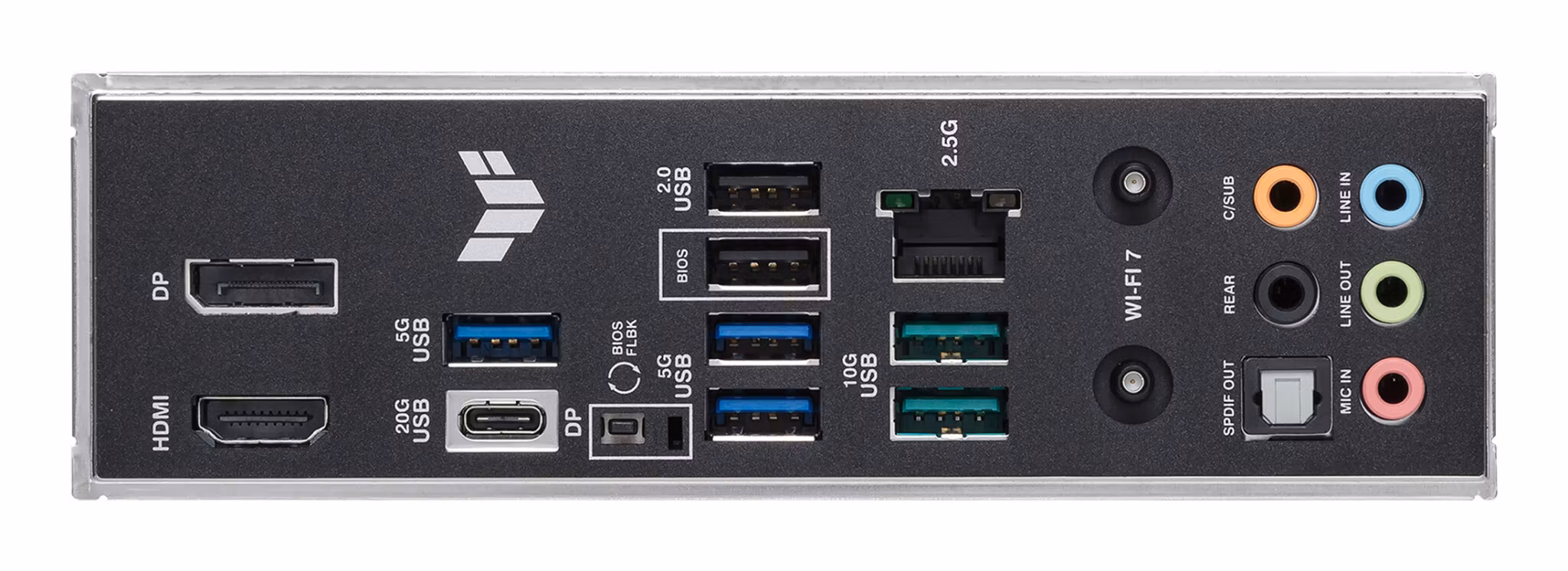

| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| S/PDIF out port | Yes |

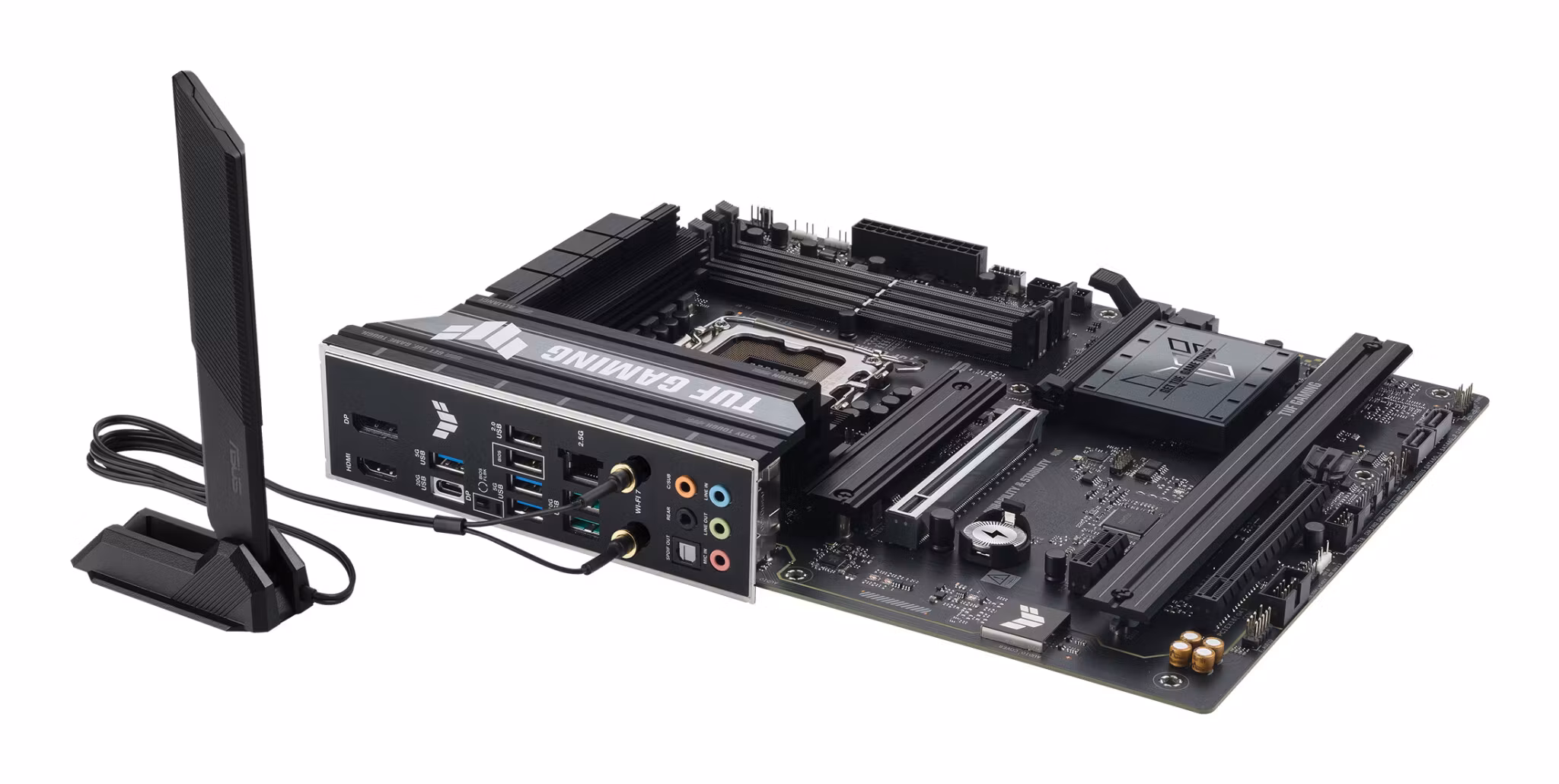

| WiFi-AP antenna jack | 1 |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Motherboard chipset | Intel B860 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 11 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 2.1 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Cables included | SATA |
| Antenna included | Yes |
| Screws included | Yes |
