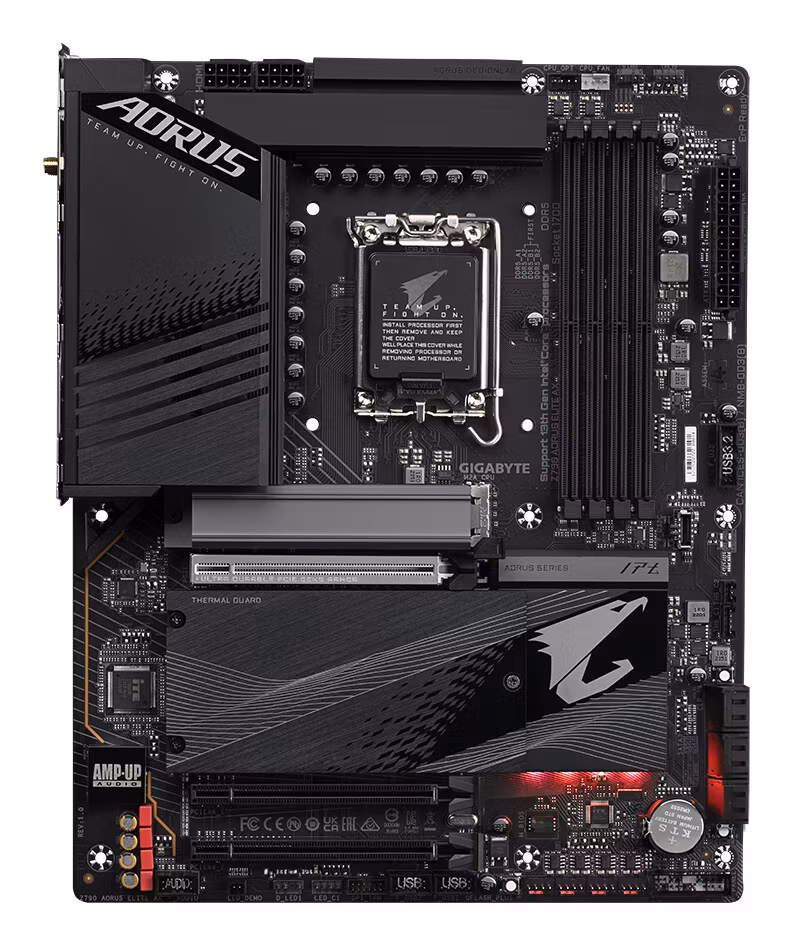

GIGABYTE Z790 AORUS ELITE AX Motherboard - Supports Intel Core 14th CPUs, 16*+2+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 4xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2x2

Artikelnummer: 4719331849467Leverantör: GIGABYTE
  • 3 266 kr

SpecifikationerProcessor manufacturerIntelProcessor socketLGA 1700Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7,

Produktbeskrivning
I lager.
Vi levererar med:
Säkra betalsätt: Payment with Apple Pay Payment with Google Pay Payment with Visa Payment with Mastercard Payment with Klarna Payment with Swish

Specifikationer

Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor socketsLGA 1700
Maximum internal memory supported by processor192 GB
Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC compatibilityECC & Non-ECC
Supported memory clock speeds7600,7400,7200,4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000 MHz
Supported memory clock speed (max)7600 MHz
Maximum internal memory192 GB
Unbuffered memoryYes
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, PCI Express 4.0, SATA III
Number of HDDs supported6
Number of storage drives supported10
RAID supportYes
RAID levels0, 1, 5, 10
Parallel processing technology supportCrossfire
On-board graphics cardNo
Maximum resolution4096 x 2304 pixels
HDCPYes
DirectX version12.0
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors6
Total number of SATA connectors6
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes
TPM connectorYes
Thunderbolt headers2
12V power connectorYes
RGB LED pin headerYes
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2x2 Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version2.0
DisplayPorts quantity1
DisplayPort version1.2
Headphone outputs2
Microphone inYes
S/PDIF out portYes
WiFi-AP antenna jack2
USB connector typeUSB Type-A, USB Type-C
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller modelIntel Wi-Fi 6E AX211
BluetoothYes
Bluetooth version5.3
Motherboard chipsetIntel Z790
Audio output channels7.1 channels
Product colourSvart
PC health monitoringFan, Temperature, Voltage, Water cooling
Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Windows operating systems supportedWindows 10 x64, Windows 11 x64
PCI Express x16 slots3
Number of M.2 (M) slots4
BIOS typeUEFI AMI
BIOS memory size256 Mbit
ACPI version5.0
Clear CMOS jumperYes
Clear CMOS buttonYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7
Country of originChina
Products per shipping (inner) case1 pc(s)
Battery weight3 g
Lithium weight per battery0.07 g
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Package width335 mm
Package depth270 mm
Package height80 mm
Package weight2.32 kg
Width305 mm
Depth244 mm
Height35 mm
Cables includedSATA
Batteries includedYes
Bundled softwareNorton Internet Security
Warranty period3 year(s)
